GENSAL Two-Bus Validation

This validation case compares GridKit’s GENSAL response against an external PowerWorld reference on a two-bus system.

The case contains a GENSAL machine on Bus 1, a 100 MW resistive load on Bus 2, a lossless tie line with X = 0.1 p.u., and a temporary bus fault on Bus 2. The monitored machine states are compared against GENSAL.ref.csv.

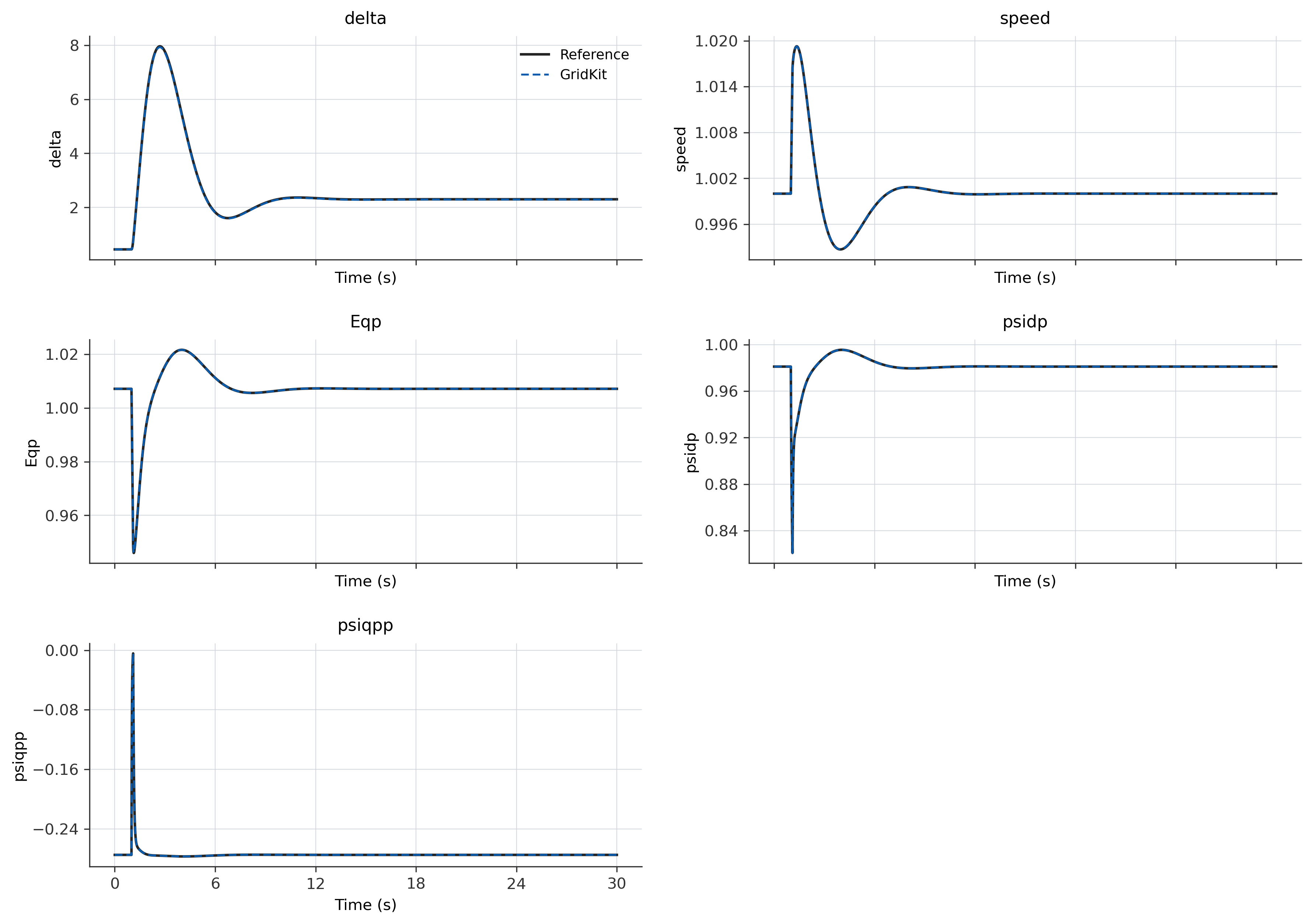

Trajectory Comparison

GENSAL validation trajectory

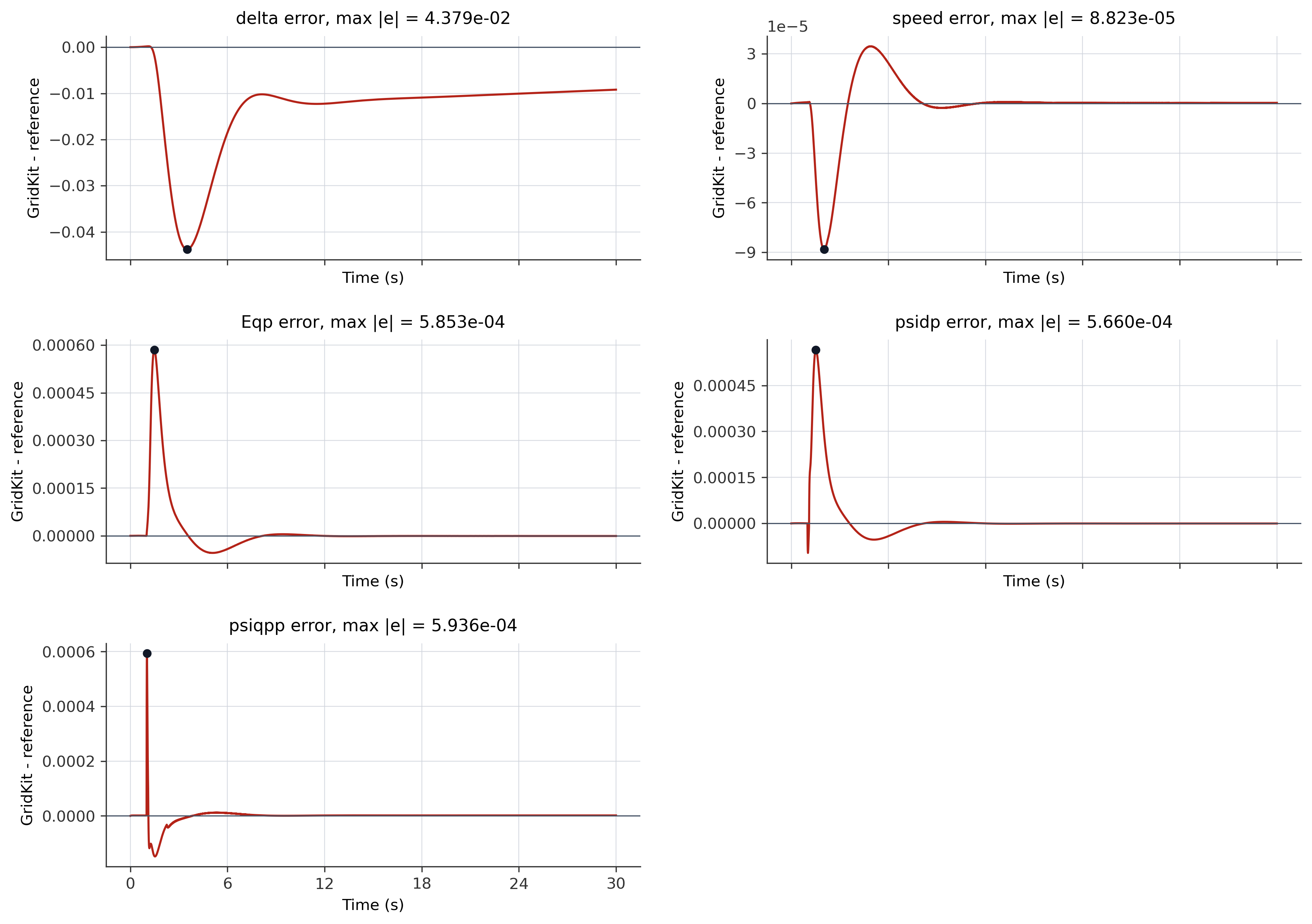

Error

GENSAL validation error
