Two-Area Kundur Case

One-Line Diagram

../../../../../_images/twoarea_oneline.png

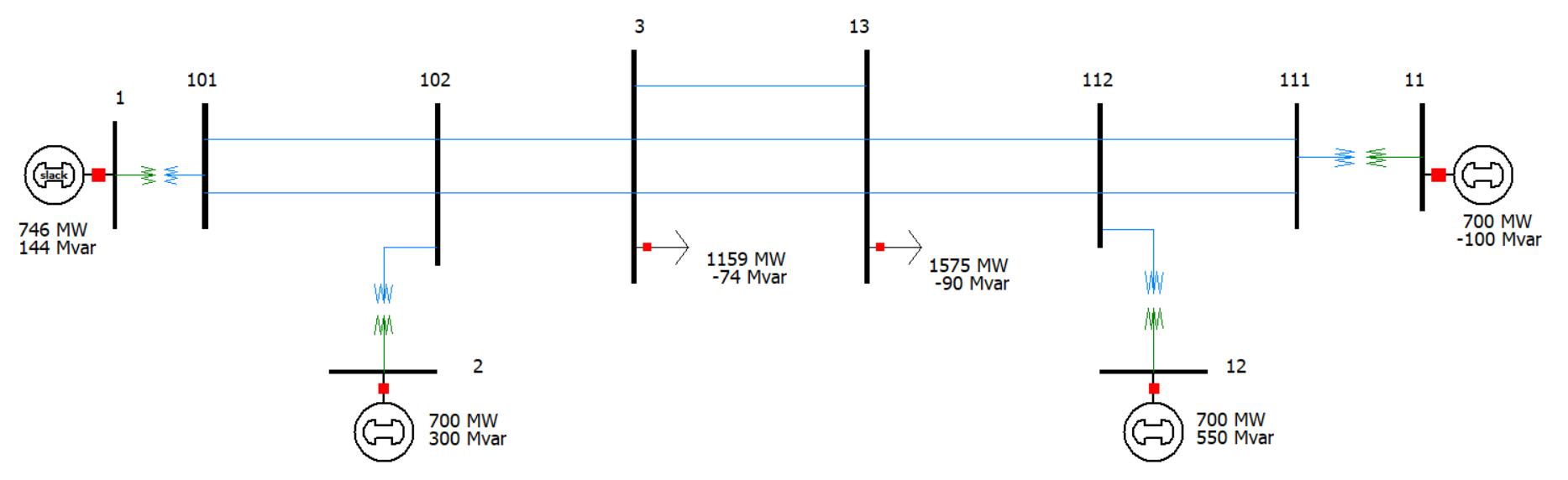

Figure 1: Oneline of the two-area Case, courtesy of PowerWorld

Case Description

This is a model derived from the well-known Kundur case in Literature. It has been modified to include exciters for the sake of implementation within GridKit.

Model

Count

Bus

10

Branch

15

GENROU

3

TGOV1

3

IEEET1

3

Case Events

The following examples needs to be constructed with this case. Currently the only events that have been implemented are faults. This is a practical case to use for modeling a line or generator outage.

  • Bus Fault

  • Line Outage

  • Generator Outage
