Western Electricity Coordinating Council (WECC)

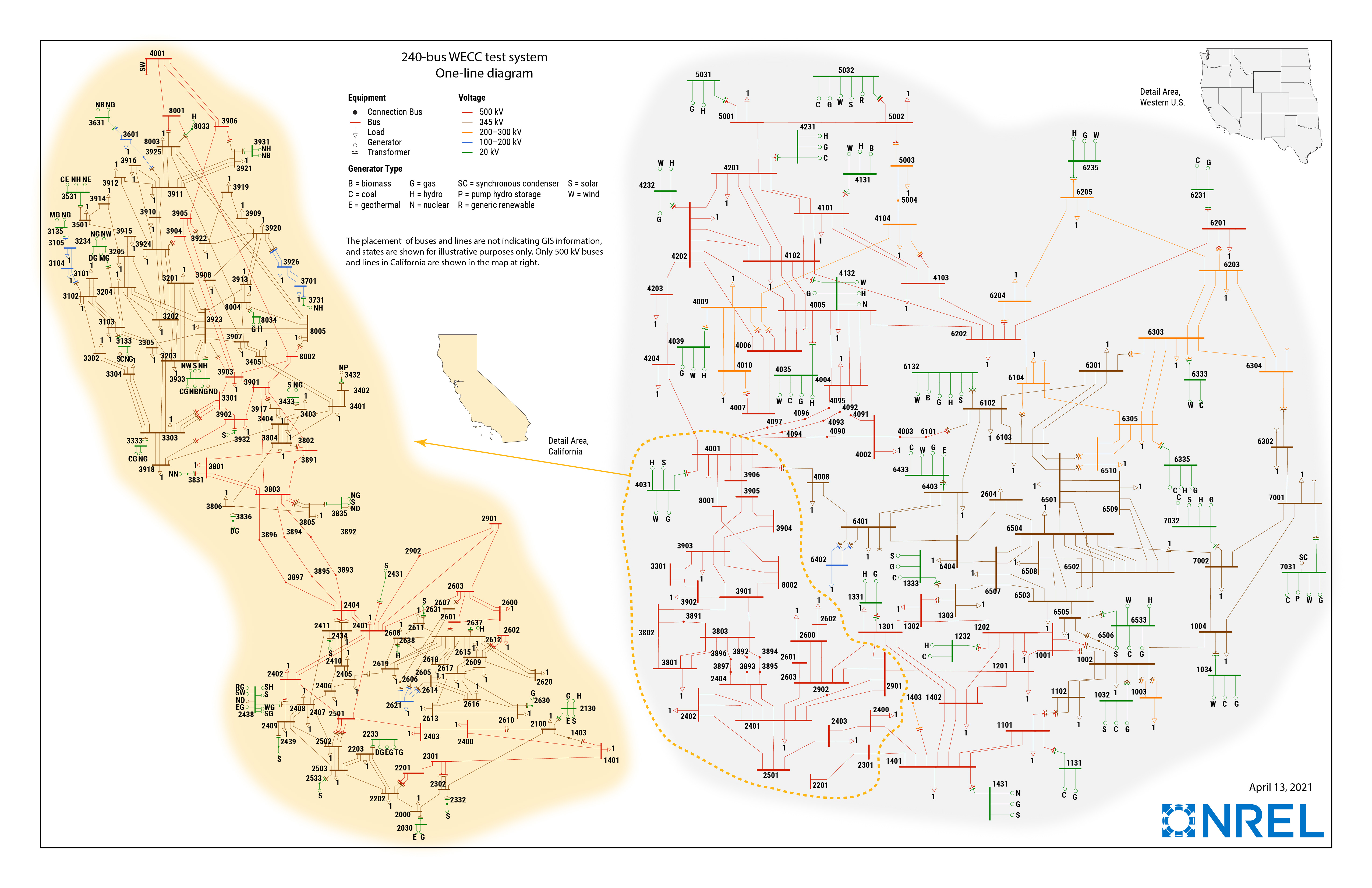

One-Line Diagram

../../../../../_images/wecc.jpg

Figure 1: Oneline of the WECC case of National Laboratory of the Rockies

Case Description

This case is adapted from the National Laboratory of the Rockies WECC Model.

It is configured with GridKit-compatible dynamic models.

Model

Count

Bus

243

Branch

447

GENROU

140

TGOV1

103

SEXS-PTI

103

IEEEST

10

LoadZIP

146

SignalNode

319

Data Notes

None.

Events

The following event types are provided for this case.

  • Bus fault

Outstanding

Dynamics

Only one exciter model is outstanding:

  • REECB1

  • GAST_PTI

  • REGCA

  • REPCA1

The following examples needs to be constructed with this case.

  • Line Outage

  • Generator Outage

  • Forced Oscillations

Statics

GridKit models Switched Shunts and Transformers with constant impedance, but this erases information and our ability to statically re-initialze the model if initalizing at a different operating point.

  • Switched Shunts

  • Transformers (LTC and Tap Ratios \(\neq 1\))
