Synthetic Illinois (ACTIVSg200)

One-Line Diagram

../../../../../_images/illinois.png

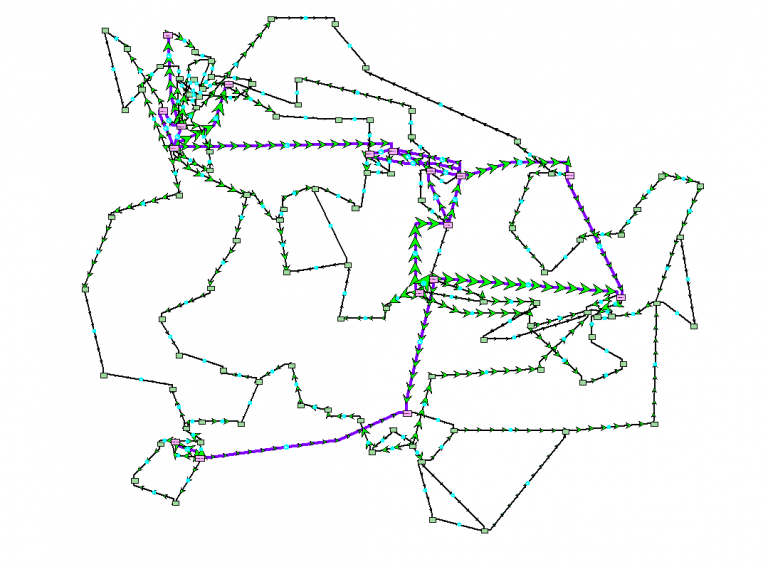

Figure 1: Oneline of the ACTIVSg200 Case, from Texas A&M University [Grid Repository](https://electricgrids.engr.tamu.edu/electric-grid-test-cases/activsg200/) (Updated Oneline WIP)

Case Description

Geographically located in the state of Illinois, the ACTIVSg200 case is a 200 bus power system test case that is entirely synthetic, built from public information and a statistical analysis of real power systems. It bears no relation to the actual grid in this location, except that generation and load profiles are similar. The dynamics of this case are fully modled in GridKit.

Model

Count

Bus

200

Branch

246

GENROU

40

TGOV1

40

SEXS-PTI

40

LoadZIP

164

SignalNode

120

Data Notes

The reference case from the .pwb file had a missing machien model at Bus 197 GIBSON CITY 1 2, so I inserted a GENROU machine model. The case will not initialize in steady state without it, and its best not to add a negative impedance load.

Events

The following event types are provided for this case.

  • Bus fault

Outstanding

Dynamics

None.

Statics

  • Transformers

  • Switched Shunts
