IEEE New England

One-Line Diagram

../../../../../_images/newengland.png

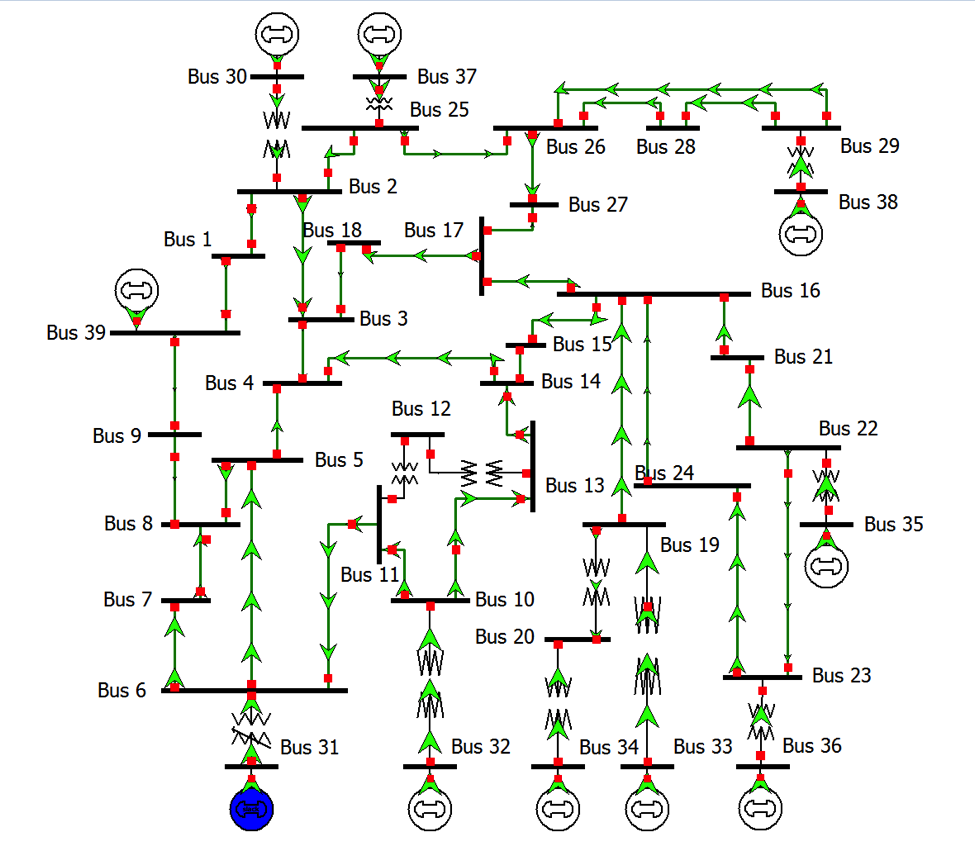

Figure 1: Oneline of the New England IEEE 39-bus case, courtesy of PowerWorld

Case Description

This case is a modified version of the NE 39-bus case, available at the Texas A&M University Electric Grid Test Case Repository. It has been modified to include GridKit-compatible generator models.

Model

Count

Bus

39

Branch

46

GENROU

10

TGOV1

10

IEEET1

10

IEEEST

10

LoadZIP

19

SignalNode

40

Events

The following event types are provided for this case.

  • Bus fault

Outstanding

Dynamics

Only one exciter model is outstanding:

  • EXST1_GE

The following examples needs to be constructed with this case. Currently the only events that have been implemented are faults. This is a practical case to use for modeling outages, or even forced oscillations.

  • Line Outage

  • Generator Outage

  • Forced Oscillations

Statics

GridKit models Switched Shunts as Load with constant impedance,but this erases information and our ability to statically re-initialze the model if initalizing at a different operating point.

  • Transformers (LTC and Tap Ratios \(\neq 1\))
